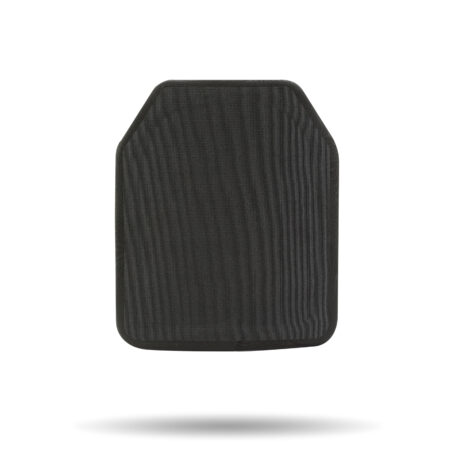

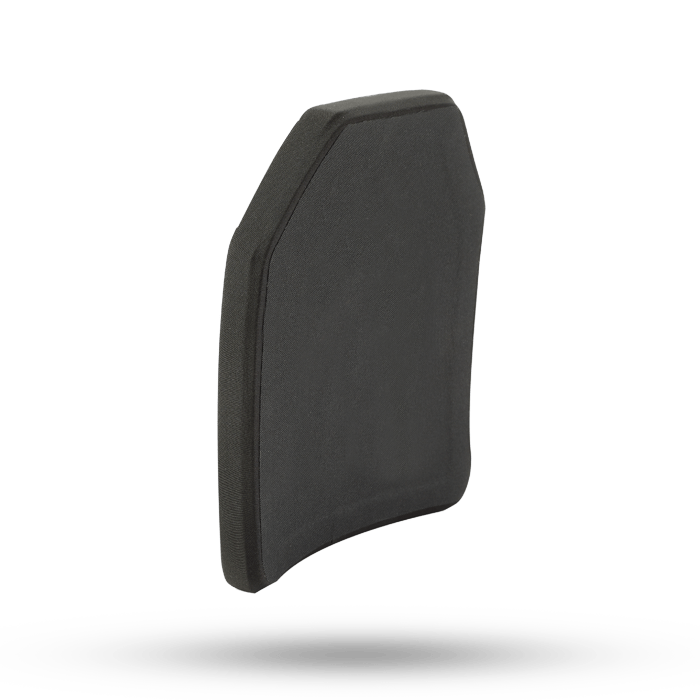

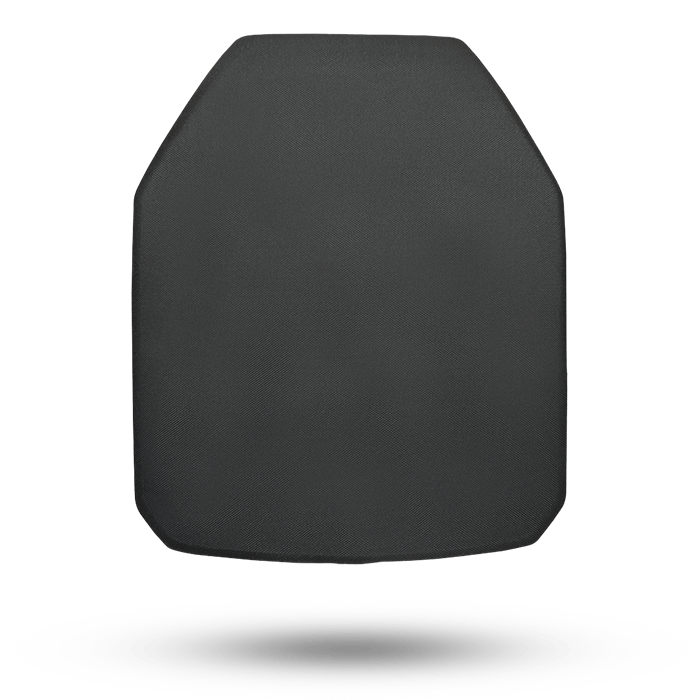

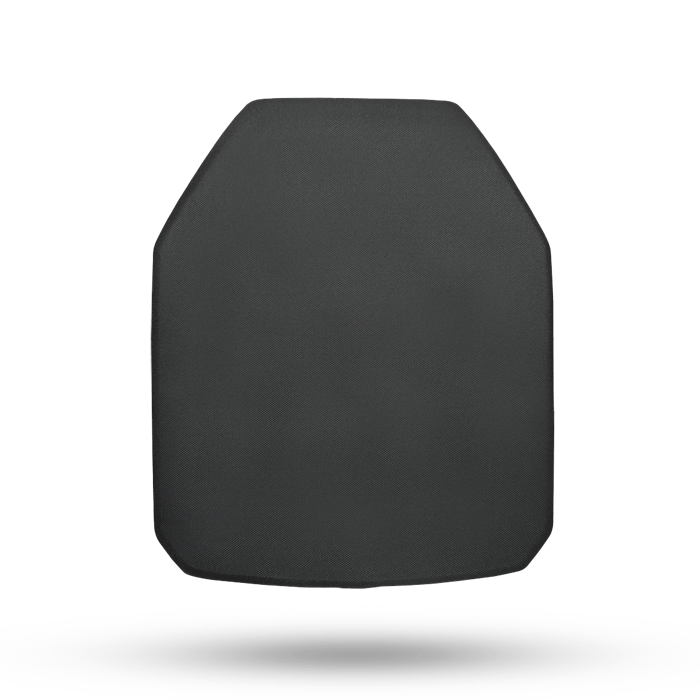

H7100 LEVEL IV PLATE
Features
- Made with Ceramic and UHMWPE materials which are processed to create a lighter, thinner, high performing plate
- NIJ 0101.06 Level IV, Model H7100
- Multi-Curve design fits to the contours of the body for maximum safety and comfort
- Rugged, reliable, and stress fracture resistant
- Fully sealed to protect against liquids, chemicals, and harsh elements
Special Threat Performance
- 5.56 x 45mm (M193 Ball)
- 5.56 x 45mm (M855/SS109)
- 7.62 x 39mm, M43 (MSC)
- 7.62 x 39mm (API BZ)
- 7.62 x 51mm (M-80 Ball)
- 7.62 x 51mm (M61 AP)
- 7.62 x 54R (LPS)
- 7.62 x 54R B-32-API
- 7.62 x 63mm AP M2 (30-06 M2)
Specifications
- NIJ Level IV
- Stand Alone
- Multi-Curve
- Thickness: 1”
- 5 year Warranty
Plate Cuts
Full Cut
Shooter Cut
SIZE AND WEIGHT CHART
SIZE | CURVATURE | CUT | WEIGHT |
6 X 6 | Single-Curve | Full | 2.13 lbs / 0.97 kg |
6 x 8 | Single-Curve | Full | 2.87 lbs / 1.30 kg |
8 x 10 | Multi-Curve | Shooter | 4.34 lbs / 1.97 kg |
8 x 10 | Multi-Curve | Full | 4.81 lbs / 2.18 kg |
10 x 12 | Multi-Curve | Shooter | 6.80 lbs / 3.08 kg |
10 x 12 | Multi-Curve | Full | 7.25 lbs / 3.29 kg |
11 x 14 | Multi-Curve | Shooter | 8.78 lbs / 3.98kg |
Tolerances: +/_ .25” – +/_ 0.25 lbs
