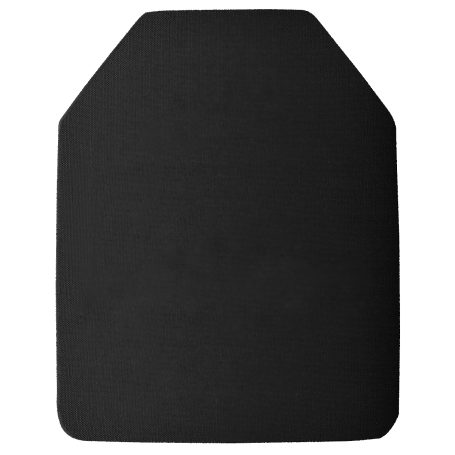

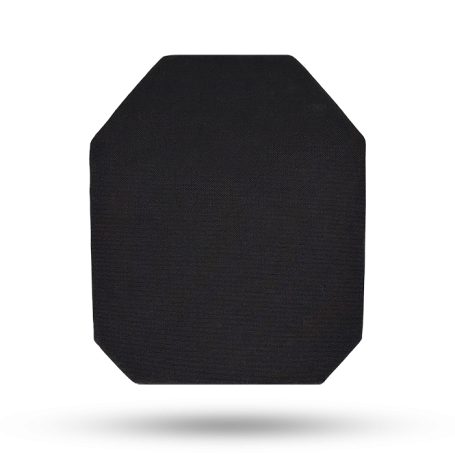

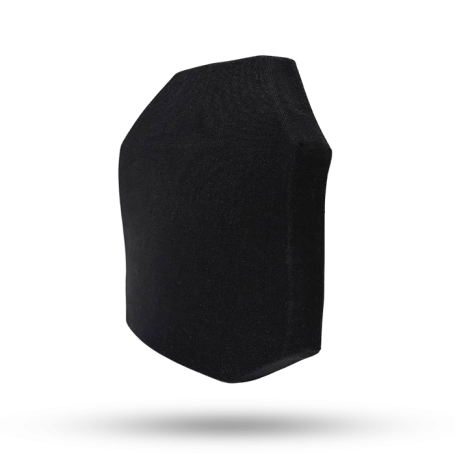

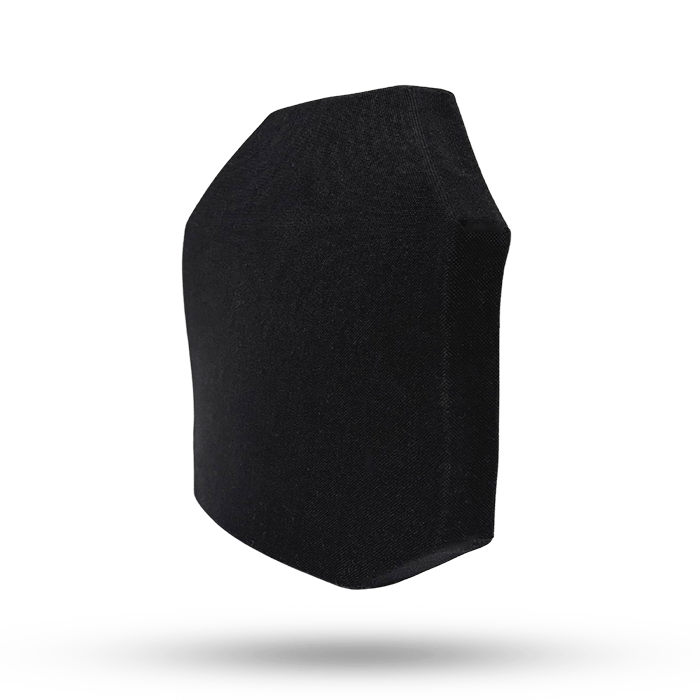

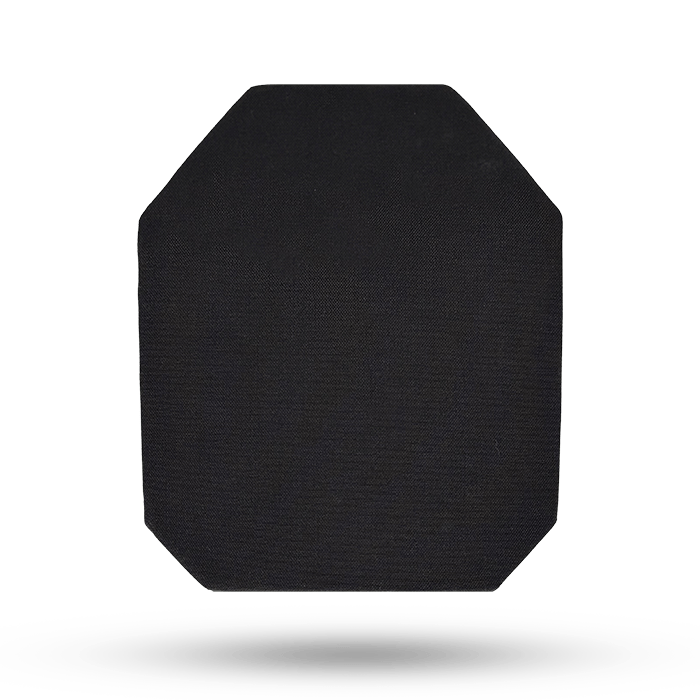

SS 4S17M Level IV Armor Plate

Features

  • Durable, High performing, Multi-Curve plate
  • NIJ Standard NIJ 0101.06 Level IV certified, stand alone
  • Manufactured from high-density alumina ceramic Core
  • Finished in black Cordura nylon covering

Special Threat Performance

  • 5.56 x 45mm (M193 Ball)
  • 5.56 x 45mm (M855/SS109)
  • 7.62 x 39mm, M43 (MSC)
  • 7.62 x 39mm (API BZ)
  • 7.62 x 51mm (M-80 Ball)
  • 7.62 x 51mm (M61 AP)
  • 7.62 x 54R (LPS)
  • 7.62 x 54R B-32-API
  • 7.62 x 63mm AP M2 (30-06 M2)

Specifications

  • NIJ Level IV Armor Piercing
  • Stand Alone
  • Thickness: 0.95”
  • 10 year Warranty

Plate Cuts

Shooter Cut
SAPI Cut
1/1

Size and Weight Chart

SIZE

CURVATURE

CUT

WEIGHT

10 x 12

Multi Curve

Shooter

7.2 lbs / 3.3 kg

7.25 x 11.5

Multi Curve

SAPI (XS)

5.5 lbs / 2.5 kg

8.75 x 11.75

Multi Curve

SAPI (S)

7.1 lbs / 3.2 kg

9.5 x 12.5

Multi Curve

SAPI (M)

8.2 lbs / 3.7 kg

10 x 13.25

Multi Curve

SAPI (L)

9.4 lbs / 4.2 kg

11 x 14

Multi Curve

SAPI (XL)

10.3 lbs / 4.7 kg

Tolerances: +/_ .25” – +/_ 0.25 lbs
